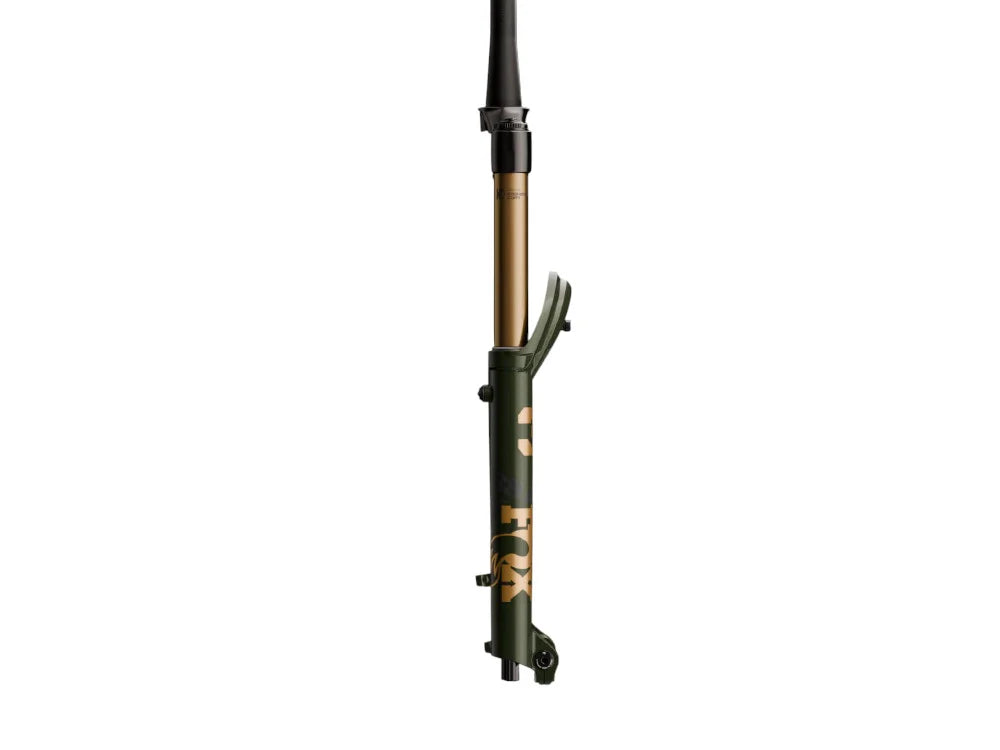

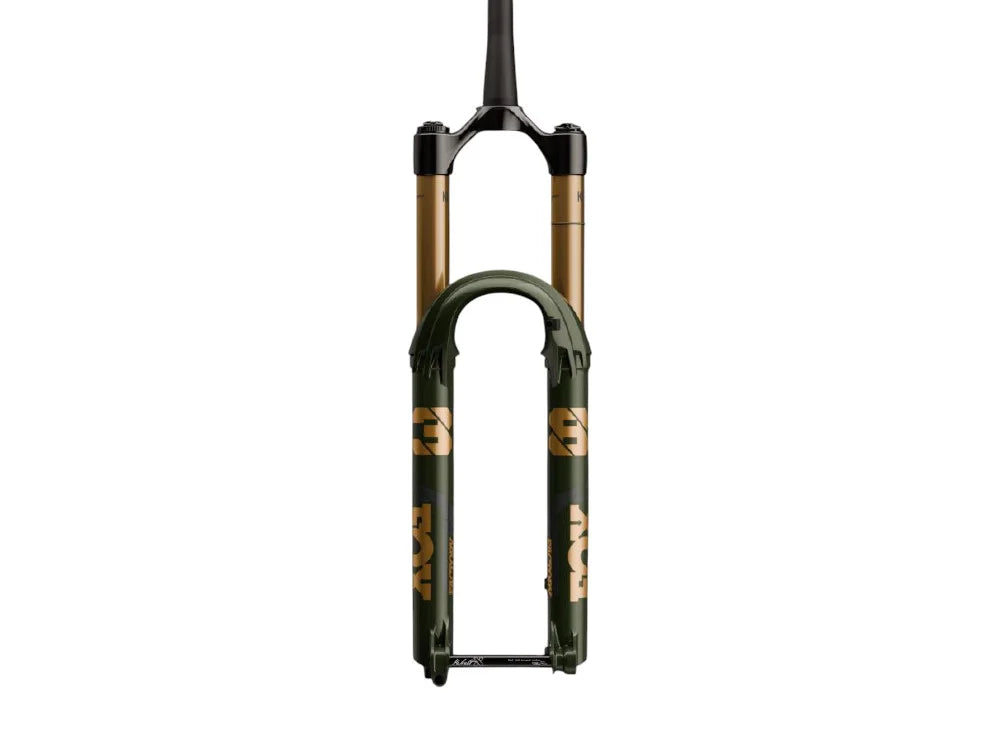

FOX 38 29" Suspension Fork - Racing Green Limited Edition

FOX suspension fork 29" 38 Float F-S GRIP X2 170 mm BOOST 44 mm Offset tapered Racing Green Limited Edition | 2026

High speed downhill. Without compromise.

With the Fox 38, you have the perfect companion at your side to help you set new best times on the mountain. With the 38, Fox redefines the performance of single crown suspension forks. The 38 is available with X2 damping and 170 mm travel in a limited edition racing green to give you an extra dose of style for your bike park adventures. But you have to be quick, the fork is limited to 1000 units worldwide.

GRIP X2 damping
The GRIP X2 is the latest evolution of the ultimate FOX cartridge and takes over from the legendary GRIP2, making it the perfect companion for all gravity riders. But how can the top damping cartridge be improved? FOX has been able to further increase the sensitivity by using a larger base valve (24 instead of 20mm), which generates more oil flow and can be extremely finely adjusted using a classic shim stack with 23 different valves. Both the rebound and compression damping can be adjusted over a wide range in both high and low speed. You will be thrilled!

EVOL
The enlarged negative air chamber improves the response of the fork. This increases comfort because the breakaway torque has been reduced. In addition, a more linear spring characteristic curve offers better performance, especially in the middle spring travel ranges.

FLOAT AIR SPRING
The FLOAT air spring system reduces the breakaway torque and thus offers a highly sensitive fork and full comfort even with small bumps, for every type of rider and at different air pressures. Similar to the FLOAT suspension struts, the FLOAT suspension system is characterized by a positive and a negative air chamber, which automatically balance each other out when riding. Every rider thus enjoys the benefits of the correct, precisely balanced air pressure in both air chambers. The progression of the spring characteristic can be adjusted with our air volume spacers - allowing every rider to precisely set the characteristics of the air spring.

BLEEDERS
The dip tube bleeders allow air pressure equalization at the touch of a button. The pressure build-up in the dip tubes drastically reduces the fork performance and prevents the full suspension travel from being reached, while at the same time the sensitivity and responsiveness of the fork suffers on small bumps.

LOWER LEG CHANNELS
When a fork compresses, the air in the lower leg channels is compressed at the same time. The further the fork compresses, the more the pressure increases. This effect means that the fork responds harder and may not be able to use the full suspension travel.
The overflow channels help to solve this problem by directing the compressed air from the lower part of the fork tubes upwards, thus reducing the unintended increase in pressure. A further advantage of these channels is that the lubricating oil in the lower section of the dip tubes circulates upwards during the spring process and continuously lubricates the foam rings and the sliding bushes.

AIR VOLUME SPACERS
The FLOAT air spring on FOX forks and shocks can be fine-tuned using volume spacers to make the suspension elements more progressive or less progressive. This allows the rider to fine-tune the suspension exactly to their needs.

KASHIMA COAT
The Genuine Kashima Coat coating for a buttery smooth ride is exclusively available only from FOX, the Kashima Coat logo is applied to both stanchions. The distinctive golden Genuine Kashima Coat coating offers superior overall performance and ensures minimal friction and optimum responsiveness with maximum durability.

KABOLT X FLOATING AXLE
A lightweight, floating thru axle that saves weight on unsprung mass while improving responsiveness. Thanks to the perfect alignment of the casting, unwanted friction on the stanchions is avoided and the function of the entire system is optimized.


Technical data:

Area of application: All Mountain, Enduro
E-bike ready: no
Wheel size: 29"
Material fork crown/stem: aluminum/aluminum
Fork crown diameter: 58 mm
Material stanchions: Aluminum, Kashima (gold coating)
stanchion diameter: 38 mm
Material downtubes: Aluminum
Axle standard: 15x110 mm Boost Kabolt-X thru axle
Steerer tube: 1.5" to 1 1/8" tapered (transition from 40 mm to 28.6 mm at 80 mm +/-3 mm)
Fork steerer length: 265 mm
Suspension travel: 170 mm
Suspension system: Float Air, air
Adjustment of the spring characteristic: yes, via volume spacer
Damping: GRIP X2, closed cartridge
Adjustment options: High-speed compression (HSC): 8 clicks | Low-speed compression (LSC): 18 clicks | High-speed rebound (HSR): 8 clicks | Low-speed rebound (LSR): 16 clicks
Lockout: without
Installation height: 583.7 mm
Brake mount: PM7, post mount (min. 180 mm brake rotor)
Max. permissible brake disk size: 230 mm
Maximum tire diameter: 762 mm
Max. tire width: 2.6" or min. 6.0 mm tire clearance to fork bridge
Offset: 44 mm
Color: Racing Green, golden decals
