SHIMANO DEORE XT M8200 12 SPEED DRIVETRAIN KIT

The Shimano Deore XT M8200 12 Speed Drivetrain Kit combines Shimano's latest DEORE XT drivetrain technologies into a complete high-performance package designed for riders who demand fast, precise shifting, exceptional durability, and uncompromising reliability. Whether you're racing cross-country, tackling technical trail rides, or pushing through demanding enduro terrain, this groupset delivers the efficiency and control expected from Shimano's legendary DEORE XT series.

Featuring the ergonomic DEORE XT M8200 shifter, the robust SHADOW ES rear derailleur, the wide-range 10-51T HYPERGLIDE+ cassette, and the premium CN-M8200 12-speed chain with Quick Link, every component is engineered to work seamlessly together. The result is lightning-fast shifting, outstanding chain retention, efficient power transfer, and smooth drivetrain performance—even under heavy pedaling loads.

Designed for modern mountain bikes equipped with Shimano's MICRO SPLINE freehub system, the M8200 drivetrain offers an impressive 510% gear range to conquer steep climbs, technical descents, and everything in between. Built with Shimano's latest engineering innovations, this complete drivetrain provides the confidence, durability, and precision required for every ride.

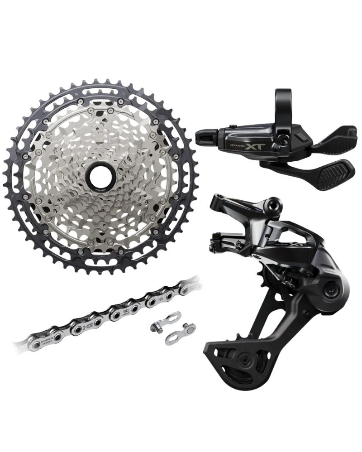

KIT INCLUDES

• Shimano Deore XT M8200 12 Speed Shifter, SL-M8200-R
• Shimano Deore XT M8200 12 Speed Rear Derailleur, RD-M8200-SGS
• Shimano Deore XT M8200 12 Speed Cassette (10-51T), CS-M8200-12
• Shimano Deore XT M8100 12 Speed Chain with Quick Link, CN-M8100 126Link

SHIMANO DEORE XT M8200 12 SPEED SHIFTER

The DEORE XT M8200 shifter delivers crisp mechanical shifting through Shimano's RAPIDFIRE PLUS technology, featuring an ergonomic lever design, shorter stroke, MULTI RELEASE, 2-WAY RELEASE, and the ability to shift up to three gears in one movement for maximum control on technical terrain.

FEATURES

• RAPIDFIRE PLUS mechanical shifting
• Ergonomic short-stroke lever design
• MULTI RELEASE and 2-WAY RELEASE technologies
• Maximum three-gear downshift in one movement
• Firmer second-click mechanism for improved shift precision
• Replaceable rubber traction pad
• Compatible with Shimano 12-speed MTB drivetrains

SPECIFICATIONS

• Series: DEORE XT M8200
• Model: SL-M8200-R
• Mount type: Clamp Band
• Rear Speeds: 12-Speed
• Shifter Type: RAPIDFIRE PLUS
• Release Technologies: MULTI RELEASE, INSTANT RELEASE, 2-WAY RELEASE
• Maximum Multiple Shifts: 3
• Compatible with 12-Speed Rear Derailleurs

SHIMANO DEORE XT M8200 12 SPEED REAR DERAILLEUR

The RD-M8200 rear derailleur features Shimano's latest SHADOW ES technology with a reinforced wide-link structure, wedge-shaped low-profile design, and integrated impact recovery system for dependable shifting performance on aggressive trails.

FEATURES

• SHADOW ES low-profile design
• Integrated impact recovery mechanism
• Wide-link construction improves rigidity
• Covered pulley design resists mud and trail debris
• Long cage compatible with 10-51T HYPERGLIDE+ cassette
• Sealed pulley bearings for long-lasting performance

SPECIFICATIONS

• Series: DEORE XT M8200
• Model: RD-M8200-SGS
• Speed: 12-Speed
• Cage: SGS Long Cage
• Compatible Cassette: HYPERGLIDE+ 10-51T
• Total Capacity: 41T
• Technology: SHADOW ES

SHIMANO DEORE XT M8200 12 SPEED CASSETTE (10-51T)

The DEORE XT M8200 cassette utilizes Shimano HYPERGLIDE+ technology to provide smooth, precise shifting under load while delivering a wide 10-51T gear range. Optimized steel and alloy sprockets balance durability, weight, and long-term performance for demanding mountain bike riding.

FEATURES

• Wide 10-51T gear range (510%)
• HYPERGLIDE+ technology
• MICRO SPLINE freehub compatible
• Optimized steel and alloy sprocket construction
• Smooth shifting under heavy pedaling loads
• Lightweight and durable design

SPECIFICATIONS

• Series: DEORE XT M8200
• Model: CS-M8200-12
• Speed: 12-Speed
• Gear Range: 10-51T
• Cassette ratio (10-51T): 10-12-14-16-18-21-24-28-33-39-45-51T
• Freehub Compatibility: MICRO SPLINE
• Technology: HYPERGLIDE+
